Cerio CS-1008G-8P A3 8 Port 10/100/1000M Gigabit PoE+ Switch ( 180Watt Power )

This switch supports 8 Port 10/100/1000M Gigabit port Power over Ethernet (PoE+), 10Mbps speed with 802.3at 30Watt PoE+ power output over distance up to 280 meters on RJ45 UTP cable. Up to 280m PoE distance allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as APs, IP Cameras or IP Phones, etc.. No longer need to worry about the complicated cables and long distance which may cost you a lot of time and money. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. Over current protection and circuit shorting protection are also supported to ensure the safety.

Highlight Features

• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE, IEEE 802.3at PoE+.
• 8port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch, supports 8 Port Gigabit PSE / PoE function, compliant with IEEE 802.3af class3 /class2/class1 and IEEE 802.3at.
• Ethernet Extend Mode per port DIP switch control makes transmission distance up to 280m.
• Support PoE Power Maximum 30W for share 1~8 PSE/PoE Ports.
• Internal 180Watt power supply supports a maximum PoE power budget of 140 Watt.
• Full/Half-Duplex capability on each TX port.
• Supports Store & Forward architecture and performs forwarding and filtering.
• Auto-learning networking configurations.
• Supporting the flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex mode.
• Broadcast storm control and supporting store & forward operation
• Support Jumbo Frame 9K.
• Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
• Supports TP interface Auto MDIX function for auto TX/RX swap.
• Automatic Source MAC Address Learning and Aging.
• Supports up to 4K MAC addresses.
• Up to 1.5M bits buffer.

CS-1008G-8P Application

CS-1008G-8P Extend PoE Mode

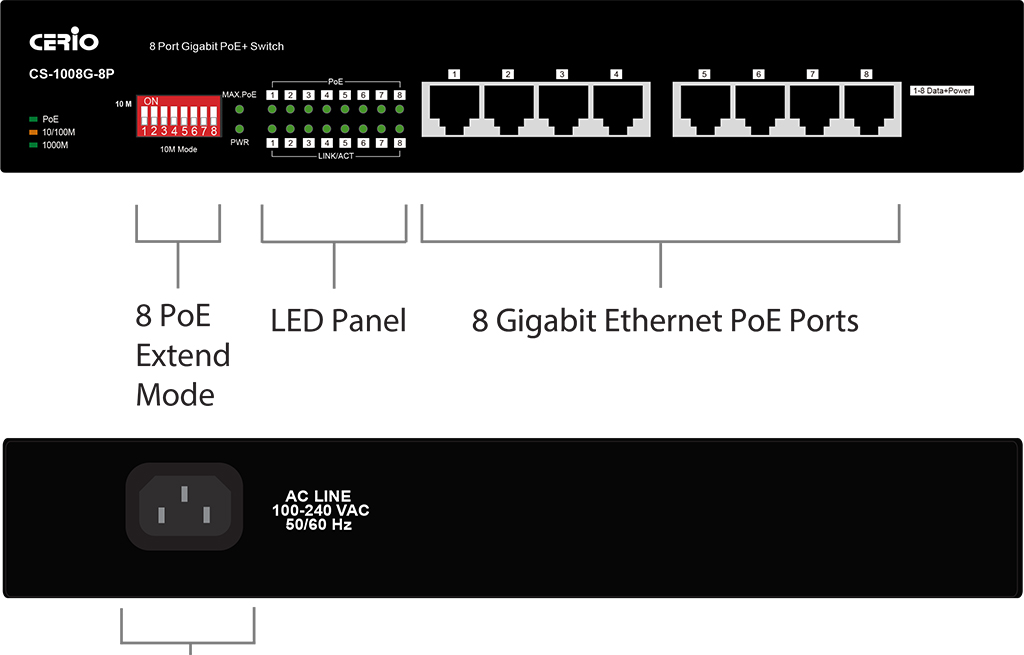

Hardware Overview

CS-1008G-8P A3 Specifications
