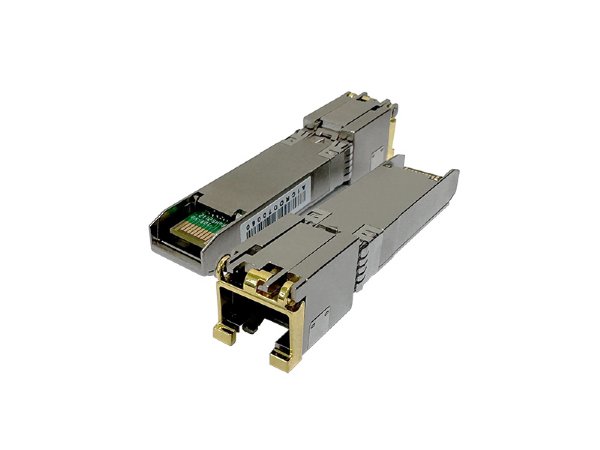

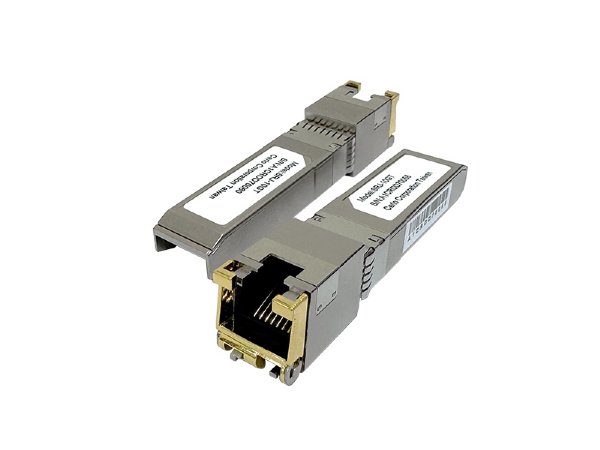

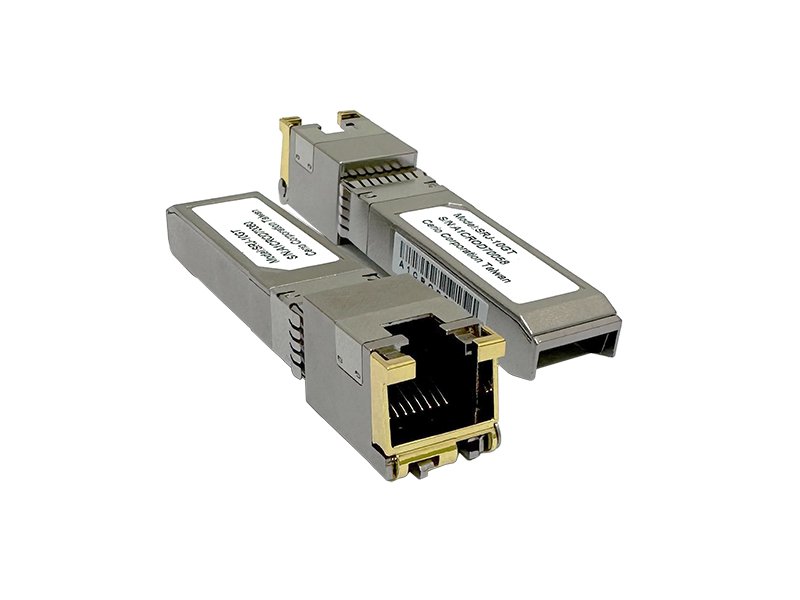

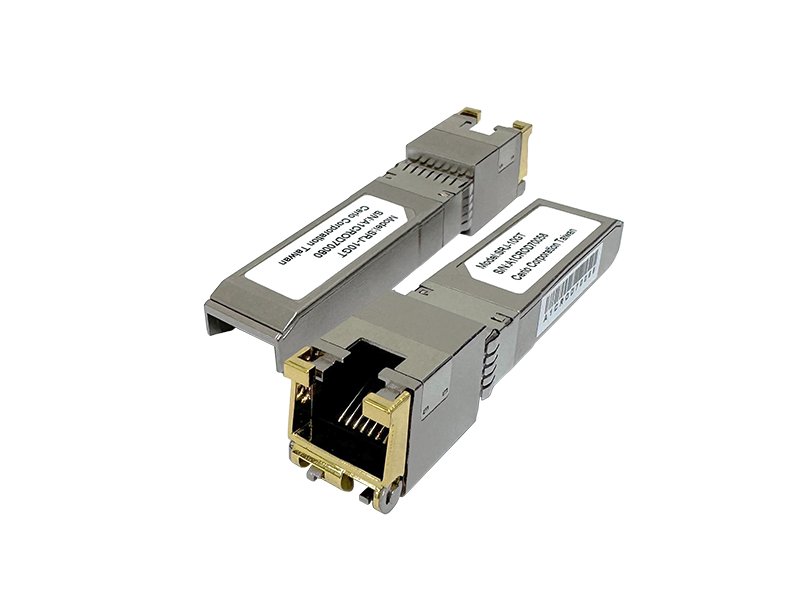

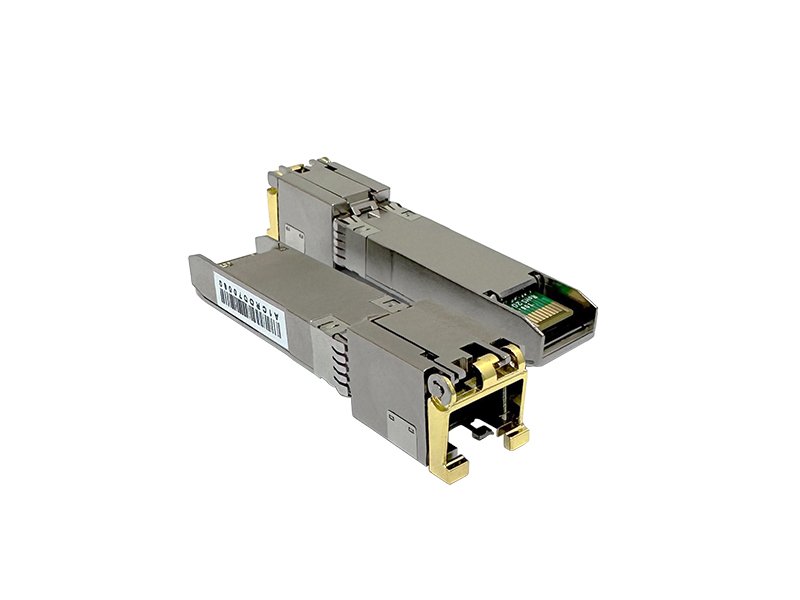

    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)

    Our Products: Browse By Brand > Cerio Corporation
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    Cerio SRJ-10GT 10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
    (Click to see larger image and other views)
    SKU: SRJ-10GT
    Brand: Cerio Corporation
    The CERIO 10GBASE-T SFP+ Copper RJ45 module is a small pluggable transceiver that can be used with switches or routers that support RJ45 connectors. It supports 1/2.5/5/10Gbps Ethernet transmission capabilities, and the maximum transmission rate can reach up to 10Gbps. This module complies with IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, and IEEE 802.3an 10GBASE-T network standards. Using Cat6a network cable, the maximum transmission distance for 10Gbps Ethernet transmission capability can reach up to 30 meters.
    MPN: SRJ-10GT
    UPC: 4712757151145
    Price: $135.00
    Special Order Item. Please Call 714-252-4868 to speak with a sales representative.
    Previous Item Previous Item   Next Item Next Item
    Product Details

    SRJ-10GT

    10GBASE-T SFP+ Copper RJ45 Transceiver (30M)

    The CERIO 10GBASE-T SFP+ Copper module uses an RJ45 interface and is directly compatible with network devices that support RJ45 interfaces. Therefore, there is no need to replace existing network equipment or re-layout fiber optic cables, and upgrades can be made to installed equipment, greatly reducing the cost of fiber optic cabling. This 10GBASE-T SFP+ Copper RJ45 transceiver is widely used in various network application scenarios, such as data centers, enterprise networks, campus networks, and wide area networks.

    Highlight Features

    • Complying with IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T and IEEE 802.3an 10GBASE-T Ethernet Standards.
    • Compliant with SFP Multi-Source Agreement (MSA).
    • Supports 1/2.5/5/10Gbps Ethernet transmission capability.
    • Complying with Auto MDIX function, which can support parallel line and crossover port and has Autonegotiation function.
    • At 10Gbps Ethernet speed use Cat6a network cable, the maximum transmission distance up to 30 meters. At 2.5/5Gbps Ethernet speed use Cat5e network cable, the maximum transmission distance up to 50 meters. At 1Gbps Ethernet speed use Ca5e network cable, the maximum transmission distance up to 100 meters.
    • Low power consumption less than 1.5W.
    • Single power supply 3.3V.
    • Hot-pluggable remove and install module.
    • RoHS compliant.
    • Plug and play, easy installation.
    Specifications
    Fiber TypeSFP Copper
    Data Transfer Rate1/2.5/5/10Gbps
    Maximum Fiber Distance10Gbps: Use Cat6a up to 30M
    2.5/5Gbps: Use Cat5e up to 50M
    1Gbps: Use Ca5e up to 100M
    Supply Voltage3.3V
    Power Consumption< 1.5W
    ConnectorRJ45
    Operating Temperature0°C ~ 65 °C
    Storage Temperature-40 °C ~85 °C
    Dimension ( W x H x D )13.4 x 13.7 x 66.7 mm
    Weight23g
    Production LocationTW
    CertificationsRoHS compatible
    Package Contents
    SRJ-10GT  Main Unitx1
    Warranty Cardx1
