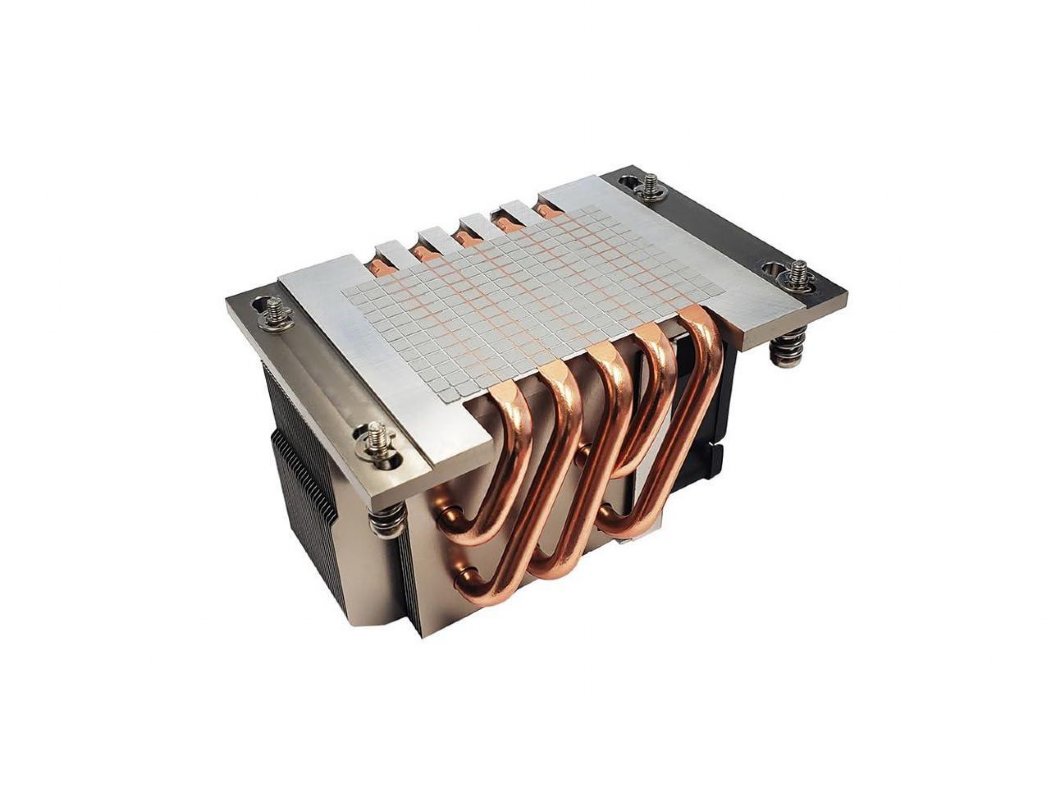

Dynatron A54 AMD Socket SP6 Air Cooler

CPU Support

AMD® THREADRIPPER / AMD® THREADRIPPER PRO 7000 / AMD® EPYCâ„¢ Processor

CPU Socket

SP6/TR5

Screw Type

M3.5

Installation Torque

12.5-15.1 in-lb

Solution

2U Server and up

Dimensions

119.0 x 79.0 x 66.0 mm (L—W—H)

Weight

455g

Material

Aluminum Heatsink with Heatpipe Embedded

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 20%: 2300 ± 10% RPM

At Duty Cycle 50%: 5400 ± 10% RPM

At Duty Cycle 100%: 11000 ± 10% RPM

Bearing

2 Ball Bearing

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 W

Air Flow

At Duty Cycle 0~20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM

Noise Level

At Duty Cycle 0~20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
