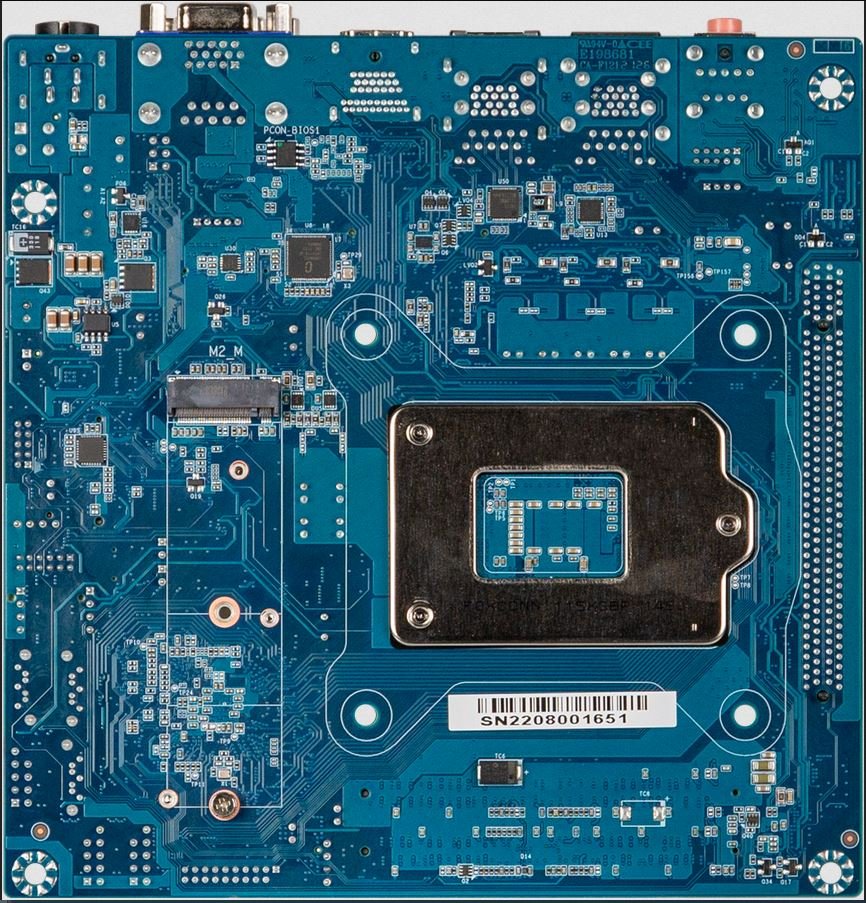

GigaIPC MITX-Q47EA Q470E LGA1200 64 GB DDR4 Mini-Itx Motherboard

Form Factor

Mini-ITX

170W x 170D (mm)

CPU

Support for 10th Generation

Intel® Core™ i9/ i7/ i5/ i3, Pentium® and Celeron® processors in the LGA1200 package

TDP under 65W

L3 cache varies with CPU

Socket

1 x LGA 1200

Chipset

Intel® Q470E Express Chipset

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual channel DDR4 2933/2666 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)

Video

Integrated Graphics Processor - depends on CPU:

1 x HDMI 2.0a port, supporting a maximum resolution of 4096x2160 @60Hz

1 x DP 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz

1 x D-Sub port, supporting a maximum resolution of 1920x1200 @60Hz

1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz

1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz

(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

3 x SATA 6Gb/s Ports (RAID 0/1/5/10)

Expansion Slots

1 x PCIe x16 (Gen3 x16)

1 x 2280/2242 M.2 M-Key (PCIe Gen3 x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key (PCIe x1 + USB2.0)

Internal I/O

1 x 4-pin ATX main power connector

2 x SATA power connectors

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Front panel audio header

1 x 2W Speaker out header

4 x USB 2.0 headers

2 x USB 3.2 Gen 1 headers

1 x COM header (RS-232)

1 x Clear CMOS jumper

1 x GPIO (8 bits) & SMBUS header

1 x Backlight Control header

1 x Buzzer
1 x ATX Control header

1 x AT/ATX mode select jumper

Rear I/O

2 x Audio Jacks (Line out, Mic in)

1 x COM Port (RS-232/422/485 & RI/5V/12V)

1 x HDMI

1 x Display Port

1 x D-Sub

2 x RJ45 LAN Ports

3 x USB 3.2 Gen 1

1 x USB 3.2 Gen 2x1

1 x DC Jack (+12V/+19V~+24VDC)

TPM

1 x TPM header (LPC)

OS Compatibility

Windows® 10 (x64)

Operating Properties

Operating temperature: 0°C to 60°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)
