    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi

    Our Products: Barebone Computers
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    HBJC420U11I-4125-B - Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi
    (Click to see larger image and other views)
    SKU: HBJC420U11I-4125-B
    Brand: Jetway
    Fanless Intel Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, AC WiFi, WALL/VESA/DIN Rail Mount, 40W 12V AC Adapter
    MPN: HBJC420U11I-4125-B
    Price: $218.50
    Previous Item Previous Item   Next Item Next Item
    Product Details
    - Intel Gemini Lake Celeron J4125 SoC Processors, 10W
    - Gemini Lake is Non-Embedded
    - Supports 3 Displays, 2 x HDMI 4K @60Hz, DP 4K @60Hz
    - 260-pin SO-DIMM DDR4-2400 up to 8GB
    - 12V DC-In & M.2 SATA & 2 x COMs
    - ECO-design for EuP/ErP
    Specification
    Model SeriesJBC420U11
    Part NumberHBJC420U11-4125B (Non-WiFi)HBJC420U11i-4125B (WiFi)
    Motherboard Specification
    CPU Fanless Intel® Celeron J4125 Processor Quad Core 2.00 GHz - 2.70 GHz, 10W TDP
    Memory 1 * 260-pin SO-DIMM DDR4-2400 up to 8GB Total
    Graphics Intel® HD Graphics 600
    LAN 2 x Realtek RTL8119I Gigabit LAN
    Audio Realtek ALC888S Audio
    Storage 1 x M.2 M-key SATA 2242
    WiFi / M.2 1 x M.2 E-key (2230, CNVi/PCIe/USB2.0) Open 1 x M.2 WiFi Installed
    Chassis Specification
    Product size 129 * 109.4 * 34 mm
    Material Lightweight aluminum alloy with extruded aluminum IO panel
    Color Black
    Storage Bay NA
    Front I/O Port 1 * Power Button with LED
    2 * Serial (1 * RS232/422/485, 1 * RS232)
    1 * USB 3.2 Gen 1 Type-C (5 Gb/s)
    1 * USB 3.2 Gen 1 Type-A (5 Gb/s)

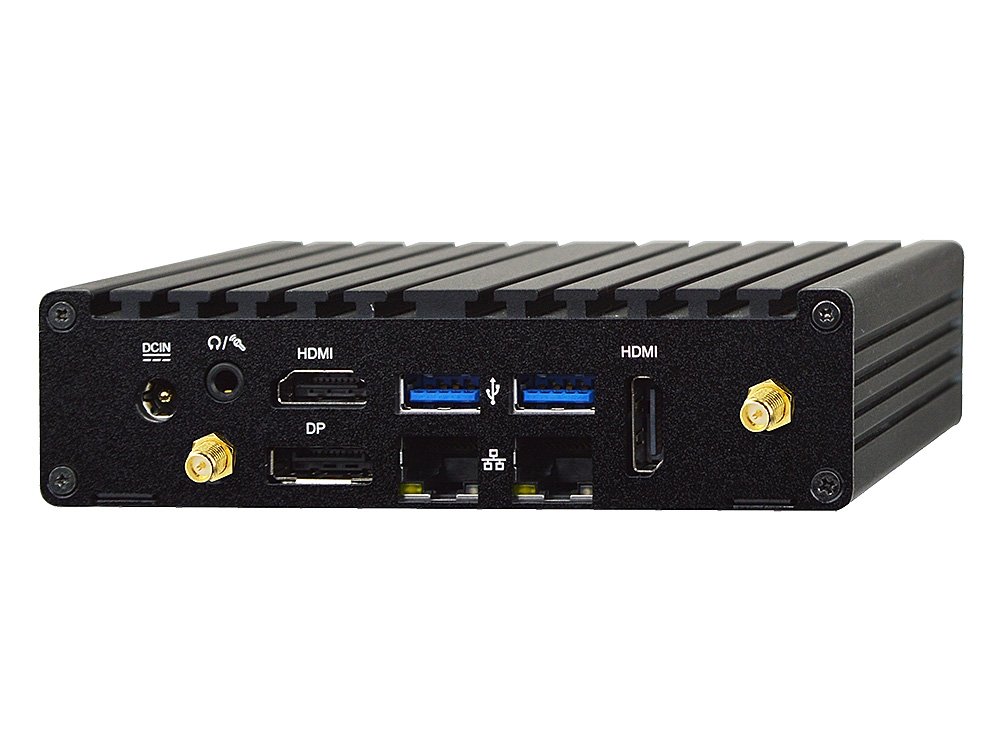

    Rear I/O Port 1 * +12V 2.5mm Diameter DC-In Power Jack
    1 * Line out / MIC in Combo Jack
    2 * HDMI 2.0 (4096 x 2160 @ 60Hz)
    1 * DP (4096 x 2304 @ 60Hz)
    2 * USB 3.2 Gen 1 Type-A (5 Gb/s)
    2 * RJ-45 Port (10/100/1000)
    2 * WiFi Antenna (WiFi version)
    Power Adapter : AC_90~240V / DC_12V/40W
    Environment Operating Temperature : -10°C ~ 50°C with air flow
    Storage Temperature : -20°C ~ 60°C
    Functional Digital Security, Digital Signage, Cloud Applications, IoT
    Certificate CE,FCC,ErP For Barebone
    CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
    Mechanical Drawing

    Ordering Info
    Part Number Description
    HBJC420U11-4125B Fanless J4125 Barebone
    HBJC420U11i-4125B Fanless J4125 Barebone with WiFi
    HCS310MWM01B-F (Incl) WALL/VESA/DIN Rail Mount (Black)
    LCSCHBJC3XX-F (Incl) Screw pack
    L01AS050-F (Incl) 40W/12V/3.3A L6 EN62368-1 2.5/5.5mm non-locking AC Adapter
