HBJC420U91Z-2930-B Thin NUC Fanless Barebone, Bay Trail, Celeron N2930, 1*Intel LAN, 2*HDMI, mSATA Only, AC-WIFI

- INTEL® Bay Trail-M N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
- Embedded Long-life Series, Planned Lifecycle Through Q1'2029
- New Thin Model â€" Only 34mm Tall
- 9V~24V DC jack on back panel for external power supply
- 2 x HDMI & DDR3L
- ECO-design for EuP/ErP

Specification

Model No	JBC420U91	JBC420U91W
Part No	HBJC420U91-2930-B	HBJC420U91W-29AC-B (AC WIFI) HBJC420U91W-2930-B (WIFI)
Motherboard Specification
CPU	Fanless INTEL® Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
Memory	1 x 204-pin DDR3L-1333 SO-DIMM Single Channel up to 8 GB (1.35V required)
VGA	Intel® HD Graphics
LAN	1 x Intel® I210-AT Gigabit Ethernet (from 5/2020 and up) * 1 x Intel® 82574L Gigabit Ethernet (up to 4/2020)
Audio	Realtek ALC887 Audio CODEC with SPDIF out
Storage	1 x full size mSATA Slot
Wireless / Mini-PCIE Slot	1 x half size Mini-PCI Express Slot	WiFi + Bluetooth
Board Form Factor	NUC Form Factor (101mm X 101mm)
Chassis Specification
Product size	129W * 109D * 34H mm
Material	Lightweight aluminum alloy with extruded aluminum IO panel
Color	Black
Storage	mSATA only
Front I/O Port	1 * Power Button 1 * Power LED 1 * COM port 1 * USB 3.0

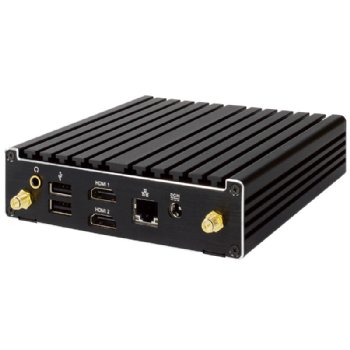

Rear I/O Port	2 * USB 2.0 ports 2 * HDMI 1 * RJ-45 port 1 * Audio line out with SPDIF out 1 * 9V ~ 24V DC-in jack 1 * SMA Connector for WiFi Antenna 1 * Kensington Lock Hole
Power	Adapter : AC_90~240V / DC_12V_3A/36W
Environment	Operating Temperature : 0 ~ 40°C with air flow Storage Temperature : -20 ~ 80°C
Functional	Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC
Certificate	CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
