In-Win IW-RS208-07.OL-CR800- 2U 8 Drive Server Chassis CRPS, 7 LP Expansion, Hybrid Oculink

Name: In-Win IW-RS208-07.OL-CR800- 2U 8 Drive Server Chassis CRPS, 7 LP Expansion, Hybrid Oculink
Brand: In-Win
SKU: CAIW-IW-RS208-07-CR800.OL
Price: 967.95 USD
Availability: InStock

Our Products: Chassis > Rackmount Chassis > Rack Storage Chassis > 2U Storage Chassis

(Click to see larger image and other views)

SKU: CAIW-IW-RS208-07-CR800.OL

Brand: In-Win

In-Win IW-RS208-07.OL-CR800- 2U 8 Drive Server Chassis CRPS 800W Power Supply with Hybrid Oculink x 8 Backplane, front panel not included.

MPN: IW-RS208-07.OL-CR800

Price: $967.95

Previous Item

Next Item

Product Details

IW-RS208-07

2U NVMe Hybrid Storage Server

- Intel^® Xeon Scalable & AMD EPYC family compliant
- Backplanes with Mini-SAS HD or OCuLink connectors (compatible with PCIe 4.0)
- 2.5"/3.5" HDD trays x 8 (optional NVMe trays x 4, distinguishes U.2 NVMe SSDs)

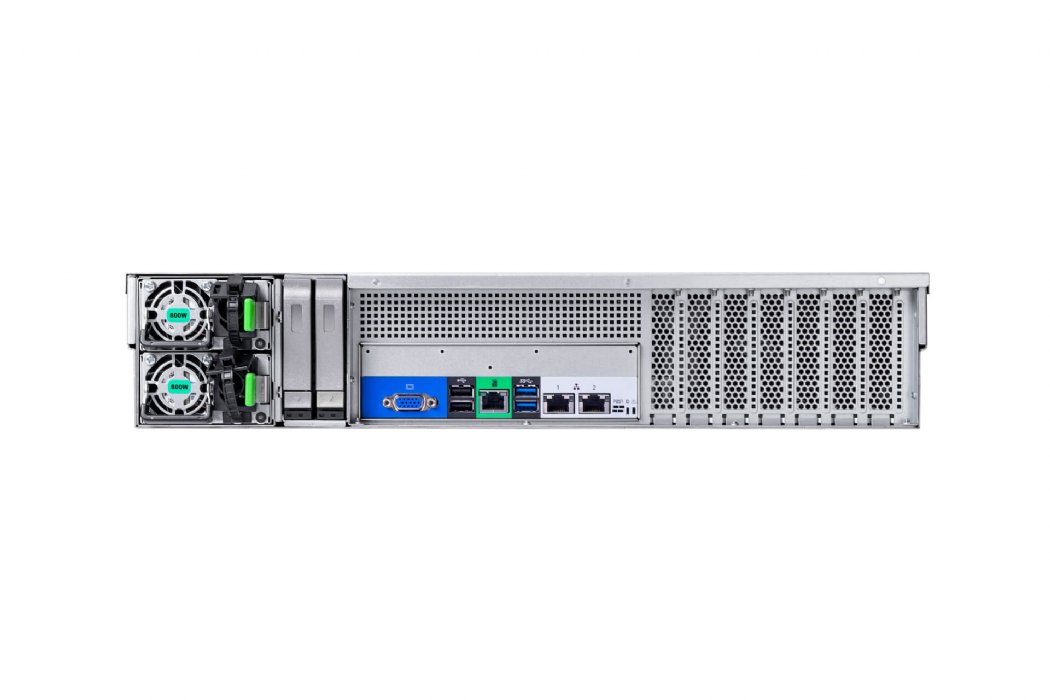

- Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks

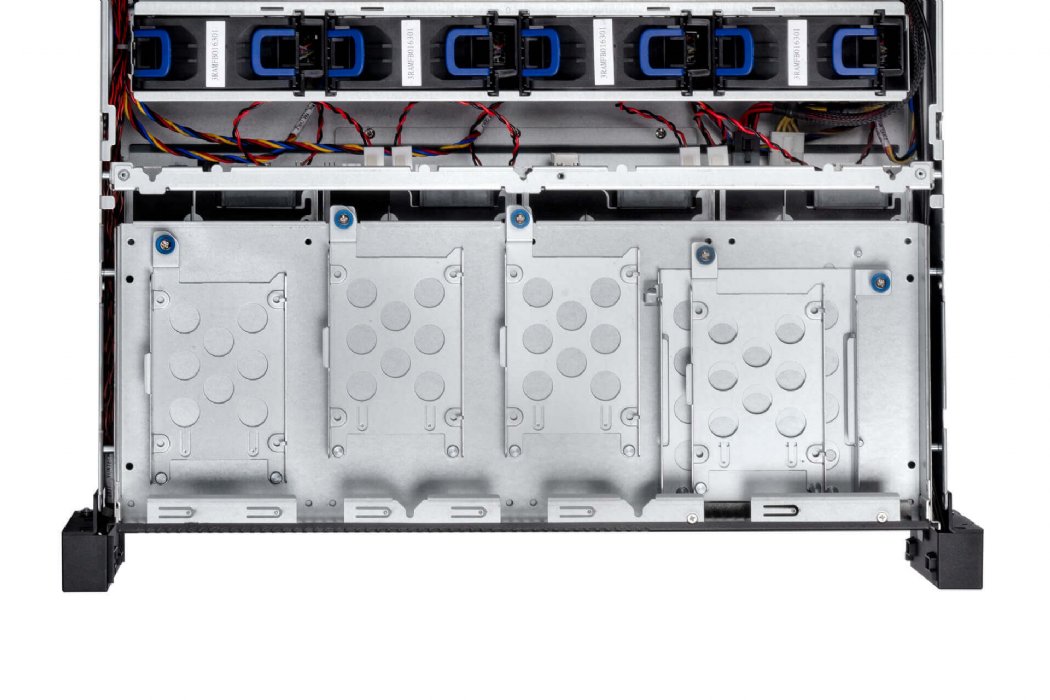

- Internal disk brackets for 4 x 2.5" SAS/SATA SSDs (one can be replaced with a slim ODD)
- 550W/800W redundant power supply, 80 Plus^® Platinum CRPS (optional)
- High-speed cooling fans for excellent thermal performance
- Supports low-profile PCle slots x 7

Specification
Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")

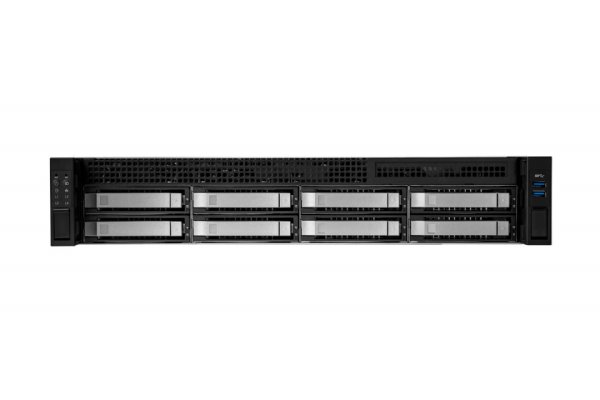

Drive Bay	External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4) Internal 2.5" x 3 or x 4 (via slim ODD conversion tray) Rear 2.5" screwless hot-swap HDD trays x 2 (supports SAS 12Gbps)
Power Supply	Supports: Form factor: 80 Plus Platinum CRPS Watt: 550W /800W
Indicator	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED
Front Control Panel	Power on/off, reset, NMI, ID SW, USB3.0 x 2
Backplane Type-1	Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4
Backplane Type-2	Host: Mini-SAS HD (SFF-8643) x 2 HDD: SAS/SATA x 8
Cooling Fan	80 x 38mm PWM hot-swap fans x 4, 12000RPM Modular design with anti-vibration
Expansion Slot	Low-profile PCIe slots x 7
Material	Material: SGCC Thickness: 1.2mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 87.5mm (26" x 17.6" x 3.4")
Package Dimensions (DxWxH)	905 x 610 x 228mm
Weight (Chassis Only)	Net weight: 13.26kg Gross weight: 16.56kg
Cubic Feet	4.44
Container Information	Single packing with pallets: 20': 160pcs 40': 336pcs 40'HQ: 378pcs

12Gbps Backplane Specifications

Backplane Type-1	Mini-SAS HD & OCuLink backplane
Dimension (W x H)	404.5mm x 52mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4
HDD Interface	SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4

Backplane Type-2	Mini-SAS HD backplane
Dimension (W x H)	404.5mm x 52mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x 2
HDD Interface	SAS/SATA x 8

* InWin NVMe backplane supports PCIe 4.0, the actual data transfer speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make any final modification.
