    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander

    Our Products: Chassis > Rackmount Chassis > Rack Storage Chassis > 2U Storage Chassis
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    (Click to see larger image and other views)
    SKU: CAIW-RS248-03.OL-CR1K2
    Brand: In-Win
    In-Win IW-RS248-03-CR1K2.OL 2U 48 Hot Swap Drive Server Chassis (optional U.2 NVMe trays x 8) ) Redundant 1200W Power Supply with OCCULINK x 4 Backplane and SAS3 Expander
    MPN: IW-RS248-03-CR1K2.OL
    Price: $1,865.00
    Special Order product. Please contact sales at 714-252-4868.
    Previous Item Previous Item   Next Item Next Item
    Product Details

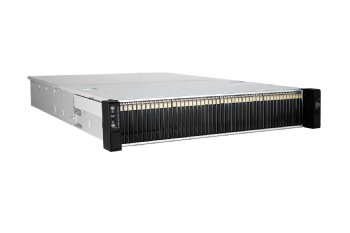

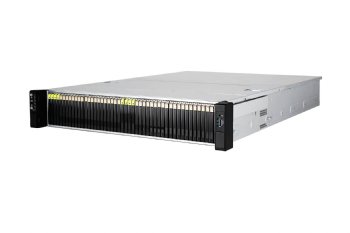

    2U NVMe Hybrid Storage Server



    - Compliant for use with AMD EPYC family
    - Backplanes with Mini-SAS HD, Oculink or Slimline connectors
    - 48 x 2.5" (7mm) hot-swap SSD/HDD (optional U.2 NVMe trays x 8)

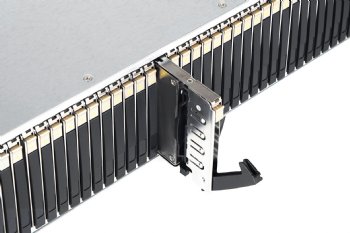

    - Tool-less design for 2.5" HDD trays

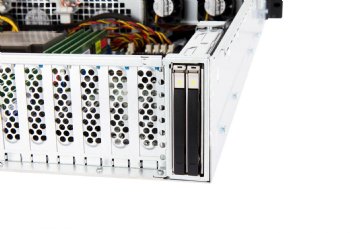

    - Rear 2.5" hot-swap trays x 2
    - Supports 12G SAS host, expander and disk
    - High-efficiency 1200W 80 Platinum CRPS power supply
    - High-speed cooling fans for excellent heat dissipation
    - Supports tool-less & ball-bearing slide rails

    Specification
    Industry Standard EIA-RS310D
    M/B Form Factor ATX (12" x 9.6"), ATX (12" x10"), EEB (12" x 13")

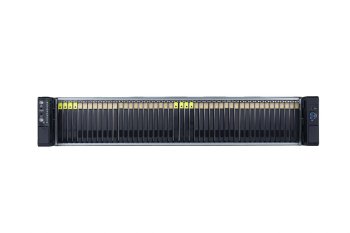

    Drive Bay External 2.5" (7mm) hot-swap SSD/HDD x 48 (optional U.2 NVMe x 8)
    Rear 2.5" (7mm) hot-swap SSD/HDD x 2

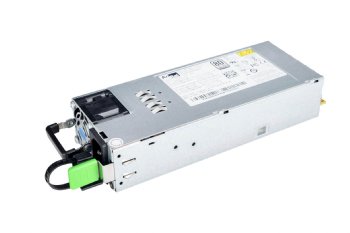

    Power Supply Supports:
    Form factor: 80 Plus Platinum CRPS with PDB cable management
    Watt: 1200W
    Indicator Power LED; LAN1/LAN2/LAN3/LAN4 LED; System LED; ID LED

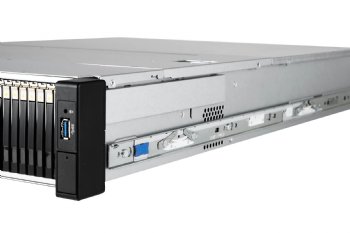

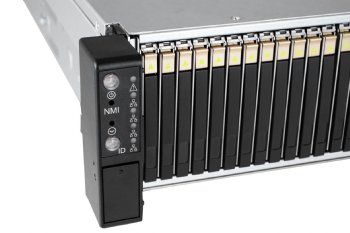

    Front Control Panel Power on/off; Reset; NMI; ID SW, USB3.0 x 1; Mute Button
    Backplane Type-1 Host: 2 pcs of [SAMTEC connect to Expander + Slimline (SFF-8654) x 4]
    HDD: 2 pcs of [NVMe/SAS/SATA (SFF-8639) x 4 + SAS/SATA x 20]
    Backplane Type-2 Host: 2 pcs of [SAMTEC connect to Expander + Oculink (SFF-8611) x 4]
    HDD: 2 pcs of [NVMe/SAS/SATA (SFF-8639) x 4 + SAS/SATA x 20]
    SAS 12G Expander 2 pcs of Mini-SAS HD Connector (SFF-8643) x 3 (Host x2, Cascade x1)

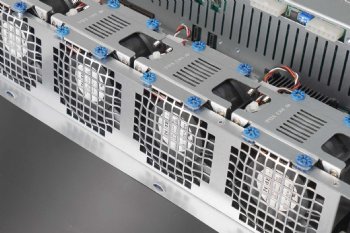

    Cooling Fan 80 x 38mm PWM fans x 4, 8300RPM
    Expansion Slot Low-profile PCIe Slot x 7
    Material Material: SGCC
    Thickness: 1.0mm
    Rail Kit Supports 28" tool-less & ball-bearing slide rail
    Product Dimensions (DxWxH; Chassis Only) 661.1 x 449.5 x 87mm
    (26.03" x 17.7" x 3.43")
    Package Dimensions (DxWxH) 900 x 610 x 242mm
    Weight (Chassis Only) Net Weight: 15.05kg
    Gross Weight: 18.84kg
    Cubic Feet 4.69
    Container Information Single Packing with Pallets:
    20': 120pcs
    40': 294pcs
    40' HQ: 378pcs


    12Gb/s Backplane Specifications

    Backplane-1 Mini-SAS HD & Slimline Backplane
    Dimension (W x H) 210.9mm x 79.3mm
    Backplane Type Active with Expander board
    Host Interface 2 pcs of Mini-SAS HD 12Gb/s with expander plus Slimline x 8
    HDD Interface 2.5" SSD/HDD (7mm) x 48 (U.2 NVMe x 8)


    Backplane-2 Mini-SAS HD & Oculink Backplane
    Dimension (W x H) 210.9mm x 79.3mm
    Backplane Type Active with Expander board
    Host Interface 2 pcs of Mini-SAS HD 12Gb/s with expander plus Oculink x 8
    HDD Interface 2.5" SSD/HDD (7mm) x 48 (U.2 NVMe x 8)
