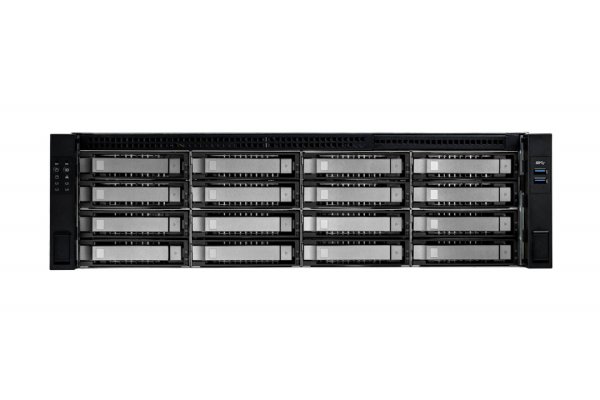

    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander

    Our Products: Chassis > Rackmount Chassis > Rack Storage Chassis > 3U Storage Chassis
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    (Click to see larger image and other views)
    SKU: CAIW-RS316-07-CR1K2.OLE
    Brand: In-Win
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander
    MPN: IW-RS316-07-CR1K2.OL
    Price: $1,659.00
    This item is out of stock. Please email sales@tierratek.com or call 714-252-4868 to speak with a sales representative.
    Previous Item Previous Item   Next Item Next Item
    Others have been interested in these additional items...
    In-Win IW-RS316-07-CR1K2.OLE- 3U 16 Drive Server Chassis CPRS 1200W Power Supply with OCULINK x 8 Hybrid Backplane w/ Expander is currently not available, but we thought you might be interested in these related items:
    28 inch King Slide Rails Kit for 07 Series Rackmount Case
    28 inch King Slide Rails Kit for 07 Series Rackmount Case
    Price $53.50
    Product Details

    IW-RS316-07

    3U NVMe Hybrid Storage Server

    - Intel® Xeon Scalable & AMD EPYC family compliant
    - Supports 2.5"/3.5" hot-swap HDD trays x 16
    - Optional NVMe trays x 8, green trays distinguish U.2 NVMe SSDs
    - Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
    - Backplanes with Mini-SAS HD, OCuLink or Slimline connectors
    - End-to-end 12G SAS host, expander and disk support
    - Internal disk brackets for 3 x 2.5" SAS/SATA SSDs (one is optional), 1 x slim ODD
    - Supports full-height PCle slots x 7
    - Highly efficient 550W/800W/1200W/1600W, 80 Plus Platinum CRPS (optional)
    - High-speed cooling fans for excellent thermal performance

    Specification
    Industry Standard Compatible with EIA-RS310D standard 19" cabinets
    M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
    Drive Bay • External 2.5"/3.5" hot-swap trays x 16 (optional U.2 NVMe SSD trays x 8)
    • Internal 2.5" SSDs x 3 (one for option) and slim ODD x 1
    • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps)
    Power Supply Supports:
    • Form factor: 80 Plus Platinum CRPS
    • Watt: 550W/800W/1200W/1600W
    Indicators Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
    Front Control Panel Power on/off, system reset, NMI, ID SW, USB3.0 x 2
    Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8
    • HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8
    Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8
    • HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8
    12Gbps Expander Module Supports broadcom SAS 35 x 36R expander
    Cooling Fans 80 x 38mm PWM hot-swap fans x 4, 12000RPM
    Expansion Slot Full-height PCIe slots x 7
    Material • Material: SGCC
    • Thickness: 1.2mm
    Rail Kit Supports 28" tool-less & ball-bearing slide rails
    Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 132.1mm
    (26" x 17.6" x 5.2")
    Package Dimensions (DxWxH) 845 x 595 x 267mm
    Weight (Chassis Only) • Net weight: 17.63kg
    • Gross weight: 21.03kg
    Cubic Feet 4.74
    Container Information Single packing with pallets:
    • 20': 140pcs
    • 40': 322pcs
    • 40'HQ: 368pcs


    Backplane Specifications

    Backplane Type-1 SAS3 & PCIe Gen4 hybrid backplane
    Data Transfer Rate SAS3 12Gb/s
    PCle Gen4 16GT/s
    Dimension (W x H) 405mm x 106mm
    Backplane Type Active with expander onboard
    Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8
    HDD Interface SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8


    Backplane Type-2 SAS3 & PCIe Gen4 hybrid backplane
    Data Transfer Rate SAS3 12Gb/s
    PCle Gen4 16GT/s
    Dimension (W x H) 405mm x 106mm
    Backplane Type Active with expander onboard
    Host Interface Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8
    HDD Interface SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8


    Rear Disk Backplane Specifications

    Backplane SAS3 backplane
    Data Transfer Rate SAS3 12Gb/s
    Dimension (W x H) 80mm x 37mm
    Backplane Type Passive
    Host Interface Mini-SAS HD (SFF-8643) x 1
    HDD Interface SAS/SATA x 2

    * InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications.
    * All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
