W-SK34-07

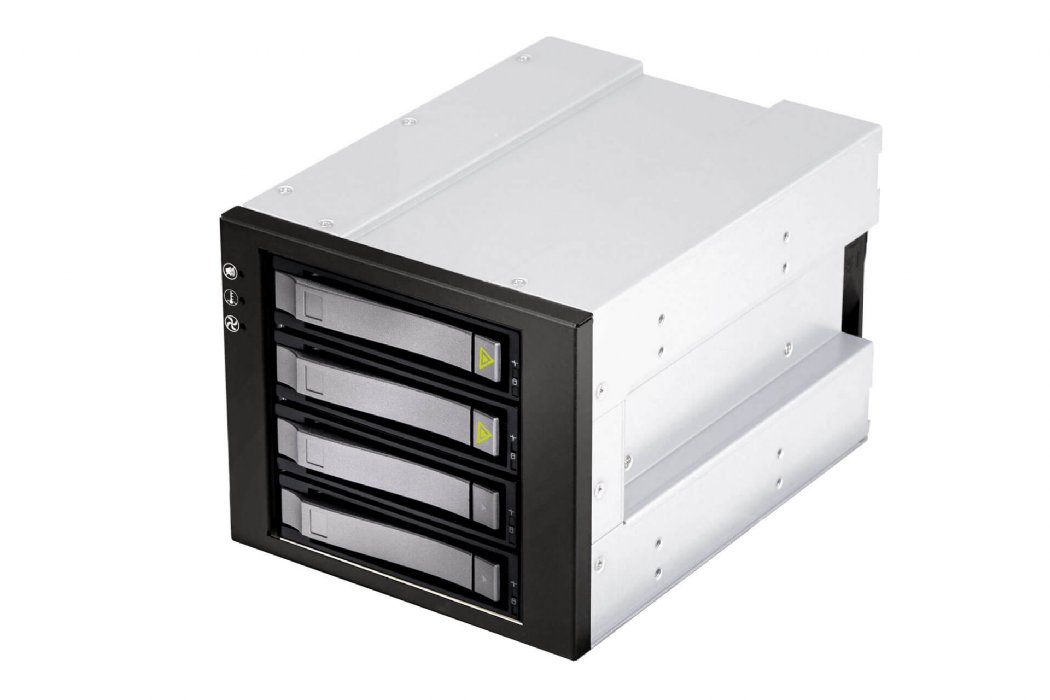

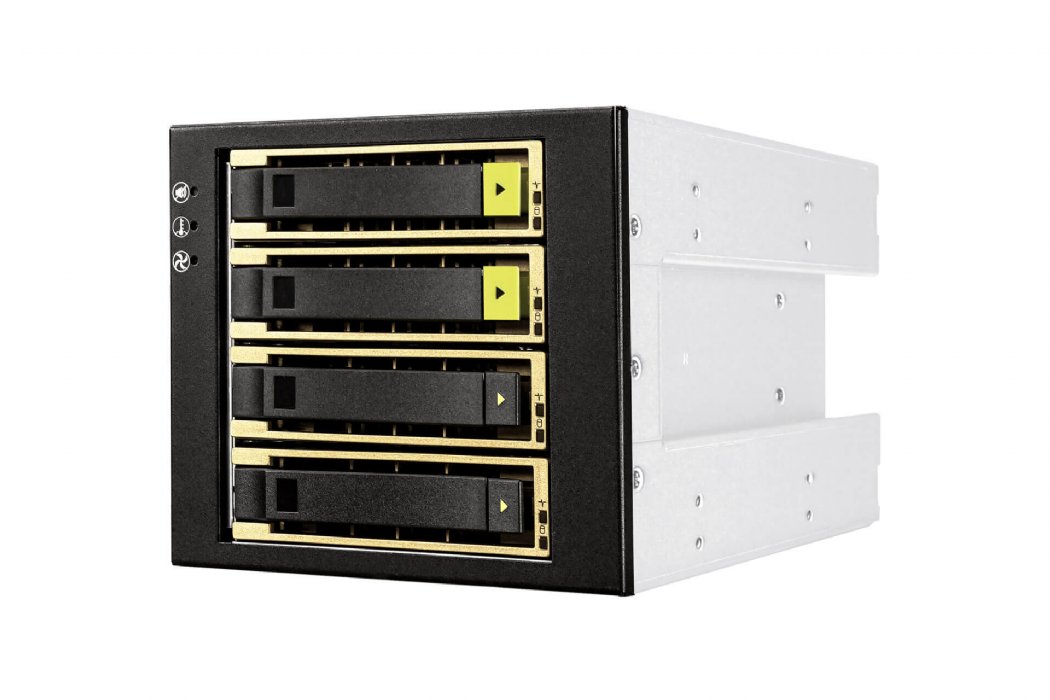

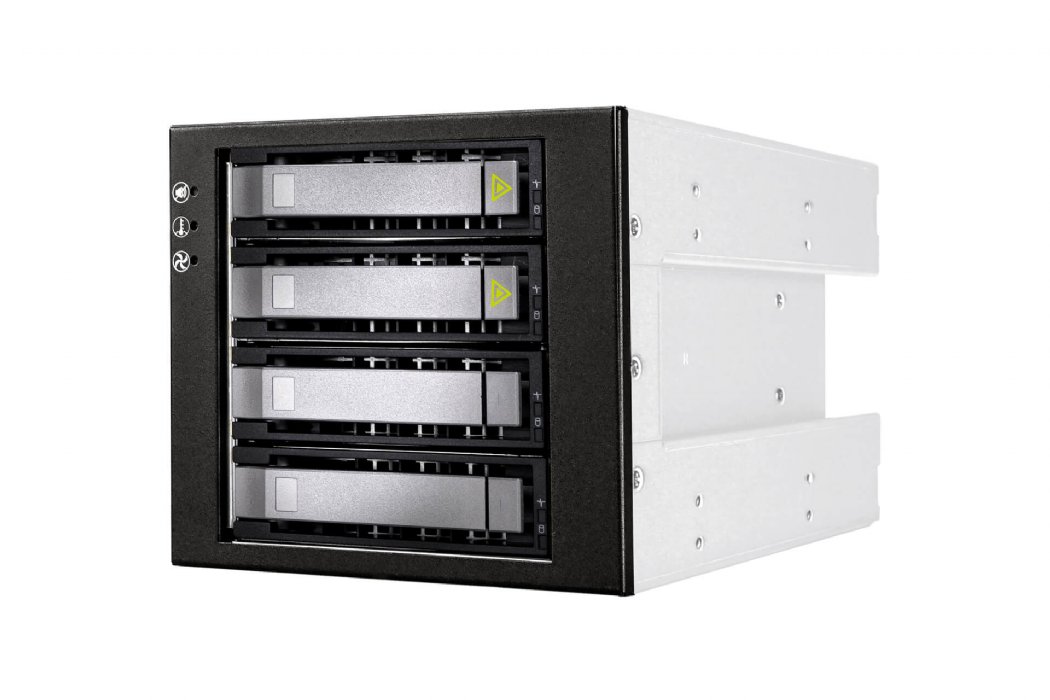

3-in-4 2.5"/3.5" NVMe/SAS/SATA III Storage Kit

---

- Designed as standard mounting hole for converting 5.25" drive bay

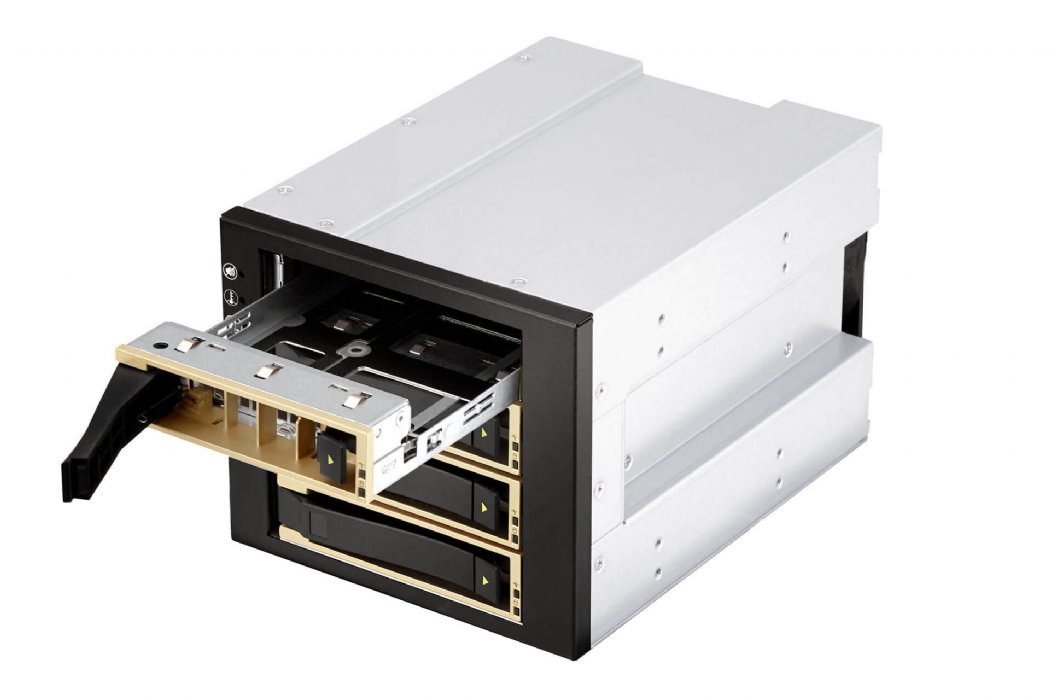

- 2.5"/3.5" hot-swap trays x 4, converts to 5.25" drive bay x 3
- Supports NVMe/SAS/SATA III HDD

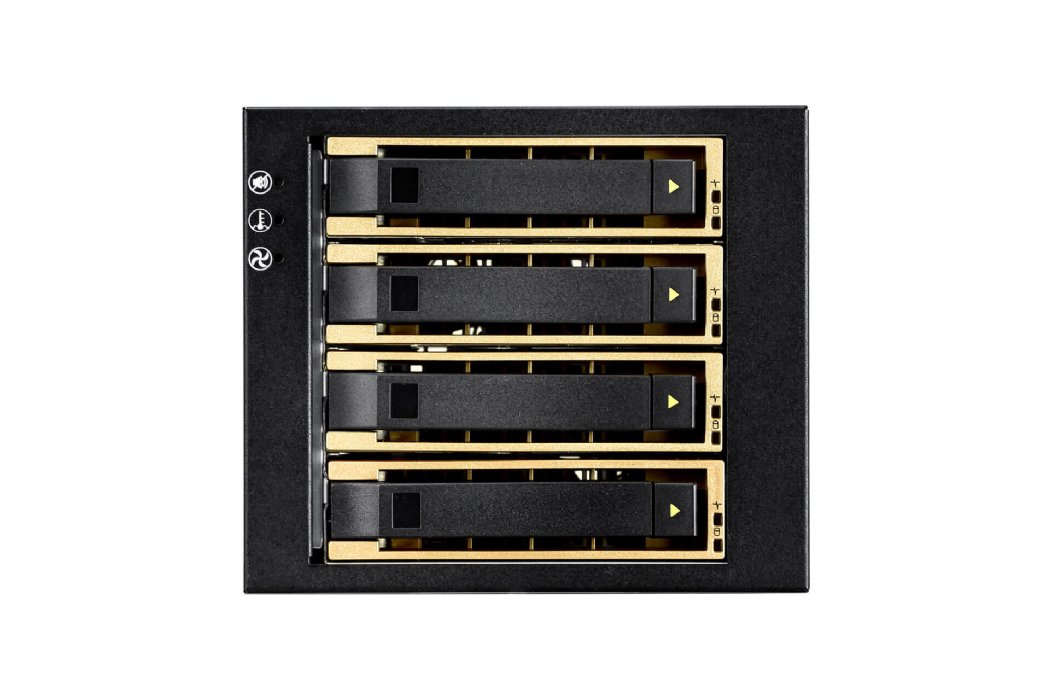

- The front indicators warn of fan failure or unusual temperature spikes

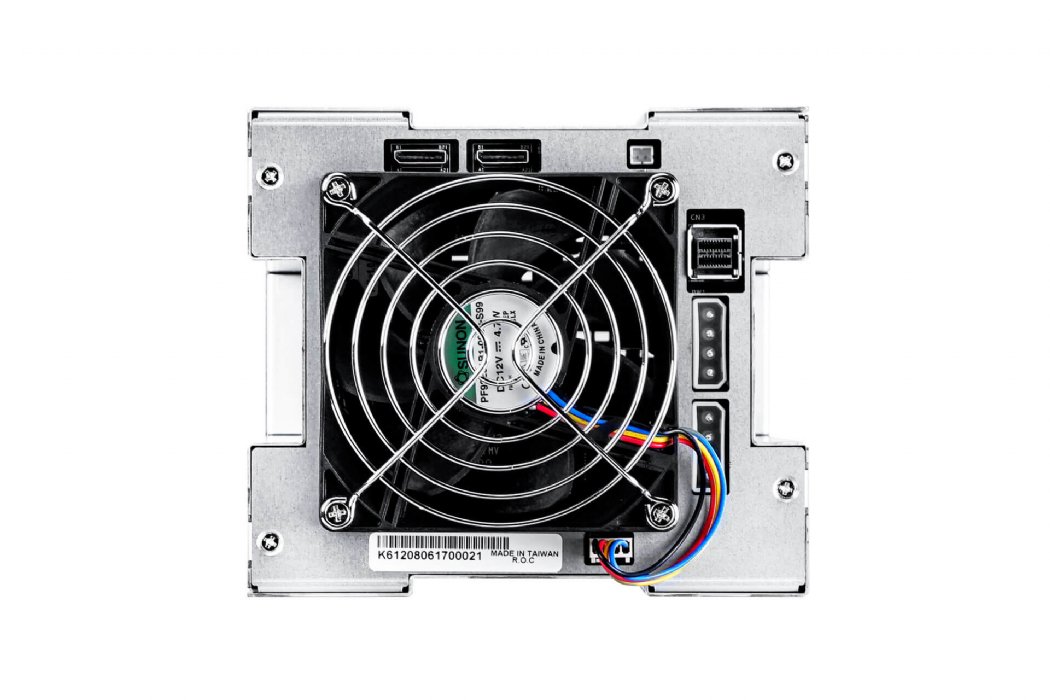

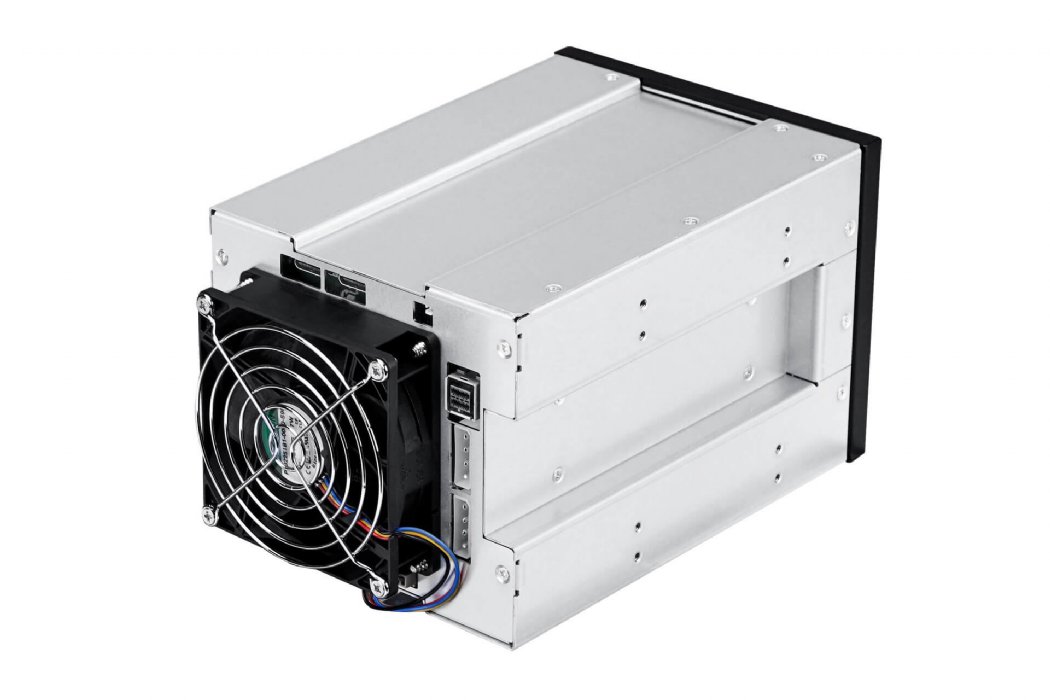

- Detachable 92mm PWM rear cooling fan

Specification
Drive Bay	Hot-swap 2.5"/3.5" x 4
Indicator	Fan failure, temperature spikes
Front Control Panel	Alarm mute
Backplane	Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2 HDD: SAS/SATA x 4 or SAS/SATA x 2 and NVMe SSD x 2
Data Transfer Rate	12Gb/s
Cooling Fan	92 x 25mm PWM easy-swap fan x1, 4500RPM
Temperature	0°C (32°F) ~ 50°C (122°F)
Humidity	5% ~ 95% non-condensing
Product Dimensions (DxWxH)	238.9 x 148 x 127.3mm (9.4" x 5.8" x 5")
Package Dimensions (DxWxH)	189 x 309 x 224mm
Weight	Net weight: 3.01kg Gross weight: 3.34kg

12Gb/s Backplane Specifications

Backplane	Mini-SAS HD & OCuLink Backplane
Dimension (W x H)	111.5mm x 111.5mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2
HDD Interface	SAS/SATA x 4 or SAS/SATA x 2 and NVMe SSD x 2

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
