JNF596-3160 Mini-ITX, Braswell, Celeron N3160

- Intel Celeron Braswell N3160/3150 SoC Processor
- Embedded Long-life Series, Lifecycle through Q1'2031
- Supports HDMI, DVI-D, LVDS 3 Independent Display
- Dual Gigabit LAN with Enhanced Surge Protection
- Supports 1 * SATA3 6Gb/s
- ECO-design for EuP/ErP

Specification

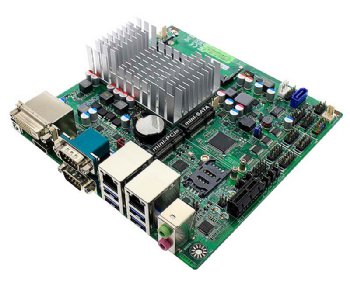

Jetway NF596 Mini-ITX Motherboard
Processor	Fanless Intel® Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support Fanless Intel® Celeron N3150 SoC, 1.60GHz – 2.08GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
Memory	1 x 204-pin SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB) * 1600MHz memory will run at 1600MHz * 1333MHz memory will run at 1066MHz * 1066MHz memory not supported
Graphics	Intel HD Graphics, 320MHz - 640MHz
Audio	Realtek ALC662 4 Channel HD Audio
LAN	2 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection
Storage	1 x SATA3 6Gb/s Connectors 1 x mSATA slot (Full Size)
Super IO	FINTEK F81866A
Back Panel Connectors
1 +12V 2.5MM Diameter DC Power Jack 1 DVI-D (2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 1 HDMI 1.4b (2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 2 Serial port (1 * RS232/422/485, 1 * RS232) 2 RJ45 LAN (10/100/1000) 4 USB 3.0 1 3.5mm Audio Jacks (Line Out & Mic In)
Onboard I/O Connectors
1 PCI Express x1 Slot 1 Full size mSATA 1 Full size mini PCI-E Slot 1 SATA3 6Gb/s Connectors 2 USB 2.0 Pin Headers for up to 3 additional USB 2.0 Ports 4 Serial Port Headers (RS232, +5V/+12V) 1 24-bits Dual Channel LVDS connector/Inverter 1 GPIO header 1 Chassis Intrusion header 1 AT/ATX Mode jumper 1 PS/2 Mouse/Keyboard header 1 9-pin Audio header (Line Out & MIC) 2 2-pin LAN LED header 1 5-pin SMBUS header 1 Front Panel header 3 Fan headers 1 SIM Card Socket 1 4-pin Power Output (Male) 1 2-pin +12V Alternate Power connector (Molex 5566-2)
