    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power

    Our Products: Motherboards
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power
    Jetway JNF792R-3160 mITX Motherboard ,Celeron N3160, ATX Power

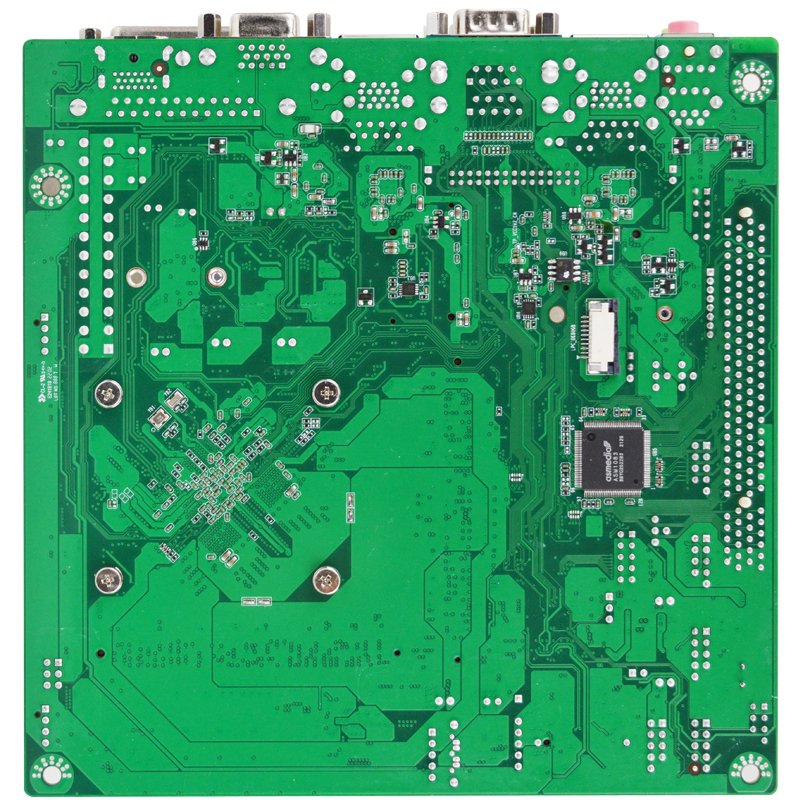

    (Click to see larger image and other views)
    SKU: MBJEJNF792R-3160
    Brand: Jetway
    Jetway JNF792R-3160 Mini- ITX Board with Quad Core Celeron N3160, 2x LAN Up to 16GB RAM, HDMI, VGA, LVDS, Serial, Parallel, SATA and M.2 SATA and PCI-Ex1
    MPN: JNF792R-3160
    Price: $424.75
    Please call 714-252-4868 or email sales@tierratek.com for shipping cost, lead time and bulk pricing information.
    Previous Item Previous Item   Next Item Next Item
    Product Details
    • - Efficient Processing: Powered by Intel® Celeron® N3160 (Formerly Braswell, TDP 6W) Triple Display Support: VGA, HDMI, and LVDS for versatile display options.
    • - Reliable Networking: Dual GbE Ethernet ports for stable connections.
    • - Data Security: Supports Intel AES-NI and optional TPM for enhanced data protection.
    • - Comprehensive I/O: 4 COM ports, 3 USB 3.0, and 5 USB 2.0 ports for diverse connectivity.
    • - Flexible Storage & Expansion: 1 x M.2 M-key, 1 x SATA III, 1 x PCI slot, 1 x Mini PCIe slot, and SIM Card Holder
    • - ATX Power Support: Compatible with ATX power input for easy integration.

    Specification
    Jetway NF792I Mini-ITX Motherboard
    SYSTEM
    MB FORM FACTORMini-ITX
    CPUOnboard Intel® Celeron® Processor N3160 (Formerly Braswell, TDP 6W)
    CHIPSETIntel® SoC
    MEMORY2 x DDR3L 1600MHz Dual Channel SO-DIMM up to 8GB
    BIOSAMI 64Mb Flash ROM
    WATCHDOG TIMER255 Levels
    SECURITYTPM
    DIMENSION (W X D)170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″)
    OS SUPPORTWindows® 10 (64bit)
    Windows® 7 (64bit)
    Windows® 7 (32bit)
    Linux
    POWER
    POWER REQUIREMENTATX Power Supply
    POWER ON MODEAT / ATX
    CONNECTORATX PWR
    DISPLAY
    GPUIntel® HD Graphics
    LVDS1 x LVDS (Max. Resolution: 1920 x 1080 @60Hz, Co-lay eDP)
    HDMI1 x HDMI 1.4 (Max Resolution: 3840 x 2160@30Hz)
    VGA1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
    MULTIPLE DISPLAYSupport 3 Displays
    AUDIO
    CODECRealtek Audio Codec
    Line-in1 x Audio Jack for Line-In
    Line-out1 x Audio Jack for Line-Out
    MIC-in1 x Audio Jack for MIC-In
    LAN
    ETHERNET2 x RJ45 for Realtek® RTL8119I GbE
    USB PORT
    USB3 x USB 3.0
    1 x USB 2.0
    Internal Header for 4 x USB 2.0
    SERIAL PORT
    COM1 x DB-9 for RS-232/422/485
    1 x DB-9 for RS-232
    Internal Header for 2 x RS-232
    INTERNAL I/O
    GPIO8-Bit
    SMBUSYes
    ADDITIONAL1 x LVDS (co-layout eDP)
    1 x Chassis Intrusion
    1 x Audio Header
    1 x Parallel
    STORAGE
    SATA1 x SATA III
    MINI PCI-E1 x Full Size Mini-PCIe
    EXPANSION
    M.21 x M-Key 2242/2260 (SATA)
    PCIE1 x PCI
    SIM1 x SIM Card Slot
    ENVIRONMENT & CERTIFICATION
    SHOCK15G, 11ms duration
    VIBRATION1 Grms/ 5~ 500Hz/ Operation
    OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)
    STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
    OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
    CERTIFICATIONCE/FCC Class A
    LVD
    ESG DECLARATIONEU RoHS
    China RoHS
    REACH
    Packing List
    TOP∧
    PART NUMBERDESCRIPTIONQTY
    JNF792R-3160 SeriesJNF792R-3160 M/B1
    G01-SATA3-BL-1FSATA III Cable1
    F04-MB-055-FI/O Shield1
