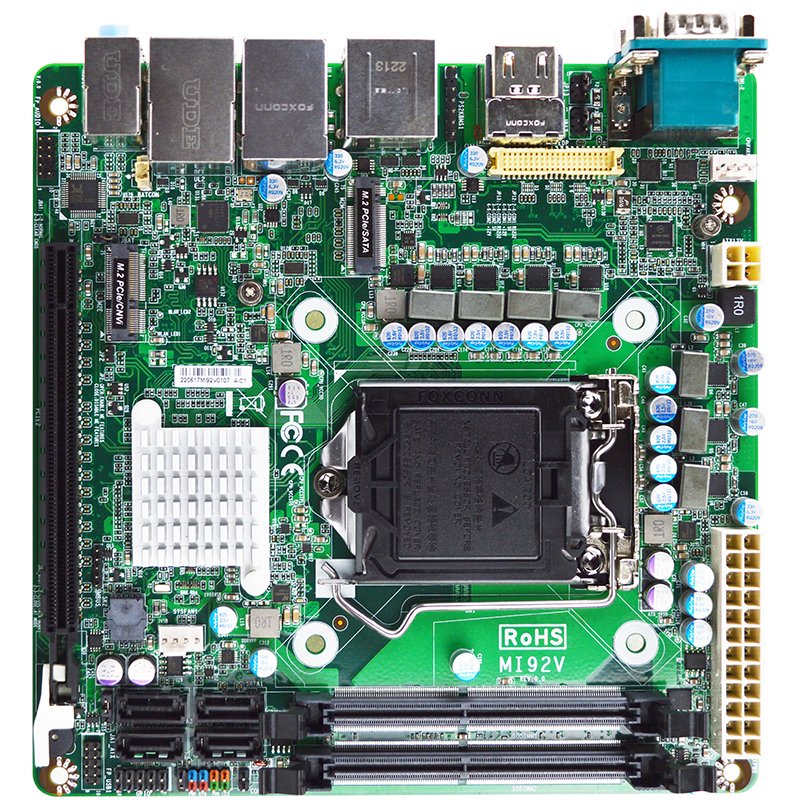

    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard

    Our Products: Motherboards
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard
    (Click to see larger image and other views)
    SKU: MBJEMI92V10
    Brand: Jetway
    Jetway MI92V10 10th Generation LGA1200 Q470 Mini-ITX Motherboard, no TPM
    MPN: MI92V10
    Price: $299.95
    Previous Item Previous Item   Next Item Next Item
    Product Details
    •  - Powered by Intel® LGA1200 10th Gen Socket Processor (Comet Lake-S, TDP 65W) with Q470 Chipset
    • - Triple Display Support: Supports 2 x HDMI, 1 x eDP, and 1 x DP with 4K resolution
    • - Dual Ethernet: Includes 1 x Intel GbE and 1 x Intel 2.5GbE for fast and reliable networking
    • - Storage: Features 4 x SATA III with RAID 0, 1, 5, 10 support and 1 x M.2 M-key (SATA/PCIe x4)
    • - Expansion Options: Provides 1 x M.2 E-key and 1 x PCIe x16 Slot
    • - Comprehensive I/O: Includes 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x USB 2.0, and 2 x RS232/422/485
    • - Optional Onboard TPM 2.0 Support for enhanced security

    SYSTEM
    MB FORM FACTORMini-ITX
    CPUIntel® LGA1200 10th Gen Socket Processor (Formerly Comet Lake-S, TDP 65W)
    CHIPSETIntel® Q470E
    MEMORY2 x DDR4 2400/2666MHz Dual Chanel SDRAM SO-DIMM up to 64GB
    BIOSAMI 128Mb Flash ROM
    WATCHDOG TIMER255 Levels
    SECURITYTPM2.0 (Optional)
    DIMENSION (W X D)170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″)
    OS SUPPORTWindows® 11 (64bit)
    Windows® 10 (64bit)
    Linux
    POWER
    POWER REQUIREMENTATX Power Supply
    POWER ON MODEAT / ATX
    CONNECTOR24+4-pin ATX PWR
    DISPLAY
    GPUIntel® HD Graphics
    eDP1 x eDP (Max Resolution: 4096 x 2304@60Hz)
    DP1 x DP (Max Resolution: 4096 x 2304@60Hz)
    HDMI2 x HDMI 1.4 (Max Resolution: 4096 x 2160@30Hz)
    MULTIPLE DISPLAYSupport 3 Displays
    AUDIO
    CODECRealtek Audio Codec
    Line-in1 x Audio Jack for Line-In
    Line-out1 x Audio Jack for Line-Out
    MIC-in1 x Audio Jack for MIC-In
    LAN
    ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
    1 x RJ45 for Intel® I219-LM GbE
    USB PORT
    USB4 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
    2 x USB 3.2 Gen 1x1 (5Gbps, Formerly USB 3.1 Gen 1)
    Internal Header for 2 x USB 2.0
    SERIAL PORT
    COM2 x DB-9 for RS-232/422/485
    INTERNAL I/O
    GPIO8-Bit
    SMBUSYes
    ADDITIONAL1 x Chassis Intrusion
    1 x PS/2
    1 x Audio Header
    1 x AT Mode Selection
    STORAGE
    SATA4 x SATA III
    RAIDRAID 0, 1, 5, 10
    EXPANSION
    M.21 x M-key 2280 (SATA/PCIex4) support NVMe
    1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVi
    PCIE1 x PCIE x16
    ENVIRONMENT & CERTIFICATION
    SHOCK15G, 11ms duration
    VIBRATION1 Grms/ 5~ 500Hz/ Operation
    OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)
    STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
    OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
    CERTIFICATIONCE/FCC Class A
    LVD
    ESG DECLARATIONEU RoHS
    China RoHS
    REACH
