SKU: MBJEJNF791-3855
Brand: Jetway
Units in Stock: 80
Jetway NF791-3855 Mini-ITX Motherboard w/2 year replacement warranty
Price: $175.00
Product Details
- Intel Skylake / Kaby Lake-U Celeron Processor 15W
- Triple display support, VGA, HDMI, eDP/LVDS
- RJ11 Jack with +12V/+24V Power for Cash Drawers
- 10 * COM / 9 * USB / mSATA and mini PCI-E
- PCI-E x1 Slot, Onboard +12V DC or 2-pin Internal Power
- ECO-design for EuP/ErP

Specification
Jetway NF791 Mini-ITX Motherboard
Processor Intel‚® Celeron Processor 3855U Dual Core 1.60GHz, 15W TDP
Memory 2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2133 up to 32GB Total
Graphics Intel‚® HD Graphics 510
Audio Realtek ALC662VD HD Audio
LAN 2 x Realtek RTL8111H PCI-E Gigabit LAN
Storage 1 x SATA3 6Gb/s
1 x mSATA
Super IO FINTEK F81866A
TPM Intel fTPM 2.0 (PTT) Trusted Computing Firmware

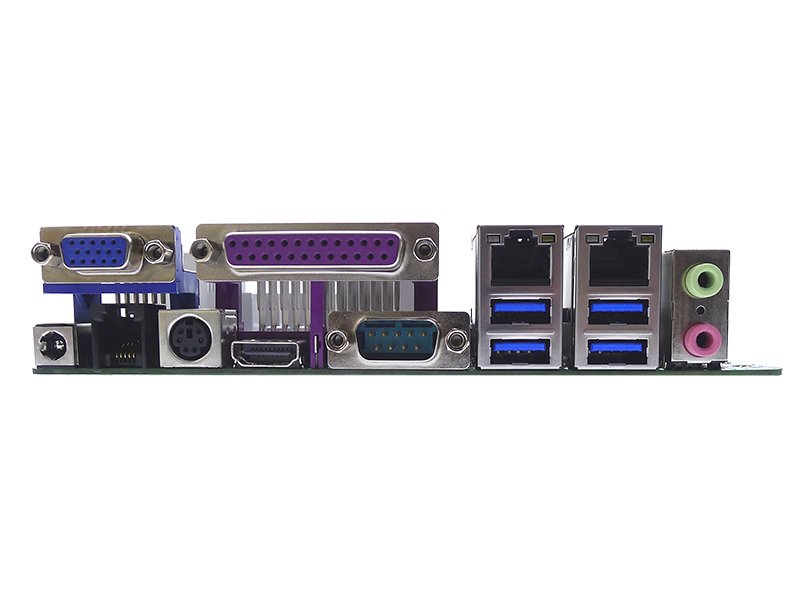

Back Panel Connectors
1 12V DC-in Jack (1-pin 2.5mm ID, 5.5mm OD)
1 RJ11 port (+12V/+24V)
1 PS/2 Keyboard/Mouse
1 VGA (1920 * 1200 @ 60Hz)
1 HDMI 1.4 (4096 * 2304 @ 24Hz)
1 Parallel Port
1 Serial Port (RS232/422/485)
2 RJ45 LAN (10/100/1000)
4 USB 3.0
2 3.5mm Audio Jack

Onboard I/O Connectors
1 PCI-E x1 Slot
1 Mini PCI-E Slot (Full-size)
1 mSATA/mini PCI-E Slot (Full-size)
1 SATA3 6Gb/s Connector
3 USB Pin Headers for up to 5 additional USB 2.0 Ports
9 Serial Headers (RS232)
1 40-pin eDP Header (4096 x 2304 @ 60Hz)
1 30-pin LVDS / 8-pin Inverter Header (1920 x 1080 @ 60Hz)
1 Chassis Intrusion Jumper
1 AT/ATX Mode Jumper
1 10-pin GPIO Header
1 9-pin Front Audio Header
1 9-pin Front Panel Header
1 5-pin SMBUS Header
1 4-pin 3W Stereo Amplifier Header (Left+Right)
2 4-pin Fan Header
2 2-pin LAN LED Header
1 2-pin Internal Power Connector (Molex 5566-2)
1 SATA Power Connector
Environment Operating Temperature : 0 ~ 60‚°C
Storage Temperature : -20 ~ 85‚°C
