    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB

    Our Products: Motherboards
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    (Click to see larger image and other views)
    SKU: MBGBIPC-mITX-1605A
    Brand: GigaIPC
    mITX-1605A Mini-ITX Embedded Motherboard with AMD Ryzen V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
    MPN: mITX-1605A
    Price: $377.00
    Non Stock Item: Please call 714-252-4868 or email sales@tierratek.com for shipping cost, lead time and bulk pricing information.
    Previous Item Previous Item   Next Item Next Item
    Product Details
    Key Features
    • Mini-ITX form factor
    • AMD Ryzen¢â€ž¢ V1605B Embedded Processor
    • Dual Channel DDR4, 2 x SO-DIMMs
    • 2 x GbE LAN Ports
    • 1 x SATA 6Gb/s Port
    • 4 x DP 1.4, LVDS (Switch from DP) ports for multiple display
    • 1 x PCIe x16 (x8 signal) expansion slot
    • 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
    • 2 x COM Ports (RS-232)
    Specification

    Form Factor

    Mini-ITX

    170W x 170D(mm)
    CPU

    AMD Ryzen¢â€ž¢ V1605B Embedded Processor

    14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz

    TDP 25W
    Socket

    1 x FP5 BGA
    Memory

    2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

    Support Dual channel DDR4 2400 MHz memory modules
    Ethernet

    2 x GbE LAN Ports (Realtek® RTL8111HS)
    Video

    Integrated Graphics Processor - AMD Radeon¢â€ž¢ Vega 8 Graphics:

    4 x DP ports, supporting a maximum resolution of 4096x2160 @60Hz

    1 x LVDS port, supporting a maximum resolution of 1080P (switch from DP)


    (4 independent display outputs)

    Audio

    Realtek® Audio Codec
    Storage

    1 x SATA 6Gb/s Port

    Expansion Slots

    1 x PCIe x16 (Gen3 x8)

    1 x 2280 M.2 M-Key (SATA 6Gb/s)

    1 x 2230 M.2 E-Key

    1 x Full-size Mini PCIe with SIM slot
    Internal I/O

    1 x 4-pin ATX power connector

    1 x SATA power connector

    1 x CPU fan header

    1 x System fan header

    1 x Front panel header

    1 x Front panel audio header

    1 x 2W Speaker out header

    6 x USB 2.0 headers

    2 x COM headers (RS-232)

    1 x GPIO (8 bits) & SMBUS header

    1 x Backlight Control header

    1 x LVDS/ DP jumper

    1 x AT/ATX mode select jumper

    1 x Clear CMOS jumper

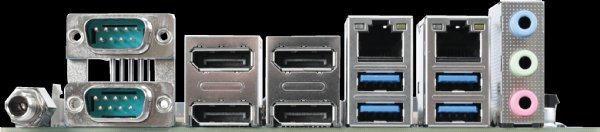

    Rear I/O

    3 x Audio Jacks (Line in, Line out, Mic in)

    2 x COM Ports (RS-232/422/485 & RI/5V/12V)

    4 x Display Ports

    2 x RJ45 LAN Ports

    4 x USB 3.2 Gen 1

    1 x DC Jack (+12V~24VDC)
    TPM

    1 x TPM header
    OS Compatibility

    Windows 10 (x64)
    Operating Properties

    Operating temperature: 0°C to 60°C

    Operating humidity: 0-90% (non-condensing)

    Non-operating temperature: -40°C to 85°C

    Non-operating humidity: 0%-95% (non-condensing)
    Packing Content Carton size: 556 x 476 x 244 (mm)
    Packing Capacity: 10pcs

    Single Box size: 206 x 223 x 105 (mm)
    Single Box weight: Approx. 0.75kg

    Including:
    IO Shield x 1 (P/N: 12AIO-MRZNV0-00R)
    SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
    Fansink x 1 (P/N: 12SF2-01A077-00R)
    Order Information

    Fan version: 9MRZNVMIMR-SI (Box packing)
    Optional Kit

    TPM 2.0 module: 9CTM000NR-00
