    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]

    Our Products: Barebone Computers
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    Jetway HBFBU03I-6412-T-A1 (Intel Elkhart Lake) [2x HDMI, 2x USB-C, WiFi]
    (Click to see larger image and other views)
    SKU: BBJEHBFBU03I-6412-T-A1
    Brand: Jetway
    Compact Fanless Embedded system with Intel® J6412 SoC processor supporting Wide temperature operation from -20°C to 60°C
    MPN: HBFBU03i-6412-T-A1
    Price: $306.80
    Previous Item Previous Item   Next Item Next Item
    Product Details

    Features

    • - Powered by Intel® J6412 SoC Processor (Elkhart Lake)
    • - Triple Display Support: 2 x HDMI and 1 x DP for flexible and high-quality visuals
    • - Dual 2.5GbE Ethernet Ports: High-speed and reliable networking
    • - Comprehensive I/O: 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen2 Type-C, and 1 x USB 2.0
    • - Optional Features: TPM module and onboard eMMC for customizable configurations
    • - Compact Fanless Design with Wall-Mount Compatibility: Optimized for Space-Saving
    SYSTEM
    MB FORM FACTORNUC
    CPUOnboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W)
    For additional compatible CPUs, please contact regional sales
    CHIPSETIntel® SoC
    MEMORY1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB
    BIOSAMI Flash ROM
    WATCHDOG TIMER255 Levels
    SECURITYTPM2.0 (Optional)
    OS SUPPORTWindows® 11 (64bit)
    Windows® 10 (64bit)
    Linux
    POWER
    POWER REQUIREMENTDC-in 12V
    40W Adapter: AC90~240V, DC12V/3.3A
    POWER ON MODEAT / ATX
    DISPLAY
    GPUIntel® HD Graphics, shared memory
    DP1 x DP (Max Resolution: 4096 x 2160@60Hz)
    HDMI2 x HDMI 2.0 (Max Resolution: 4096 x 2160@60Hz)
    MULTIPLE DISPLAYSupport 3 Displays
    LAN
    ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
    SYSTEM I/O
    REAR PANEL I/O2 x RJ45
    1 x DP
    1 x DC-in
    2 x HDMI
    1 x USB 3.1 (Gen 2)
    2 x WIFI Antenna Holes
    1 x GND Hold

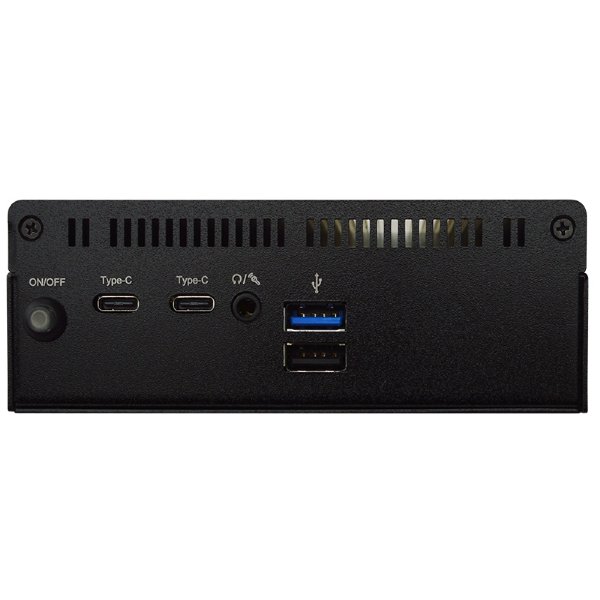

    FRONT PANEL I/O1 x Power Button
    1 x Power LED
    2 x USB 3.1 Gen 2 Type C
    1 x Combo Audio (Line out & Mic)
    1 x USB 2.0
    1 x USB 3.1 (Gen 2)
    STORAGE
    eMMCOnboard 64GB eMMC 5.1 (optional)
    EXPANSION
    M.21 x M-Key 2260/2280 (PCIe 3.0 x2/SATA) Support NVMe
    1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
    MECHANICAL
    MOUNTINGWall Mount
    DIMENSIONS (W x H x D)125.0 (W) x 109.2 (D) x 44.5 (H) mm
    ENVIRONMENT & CERTIFICATION
    SHOCK15G, 11ms duration
    VIBRATION1 Grms/ 5~ 500Hz/ Operation
    OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
    STORAGE TEMPERATURE-40°C ~ 85°C (-40°F ~ 185°F)
    OPERATING HUMIDITY10 ~ 95% @ 40°C, Non-condensing
    CERTIFICATIONCE/FCC Class A
    LVD
    ESG DECLARATIONEU RoHS
    China RoHS
    ErP
