    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors

    Our Products: Barebone Computers
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    Jetway HBFDF731-3955-V - Fanless Intel Celeron 3955U, Skylake-U 15W Processors
    (Click to see larger image and other views)
    SKU: BBJEHBFDF731-3955-V
    Brand: Jetway
    Fanless Intel Celeron 3955U, Skylake-U 15W Processors, No WiFi, Wall Mount, DIN Rail, 60W 12V AC Adapter
    MPN: HBFDF731-3955-V
    Price: $304.75
    Previous Item Previous Item   Next Item Next Item
    Product Details

    - Fanless Intel Skylake-U Celeron Processor 15W
    - Embedded Long-life Series, Planned Lifecycle Through Q3’2030
    - 3 * Intel 2.5GbE and 1 * Intel 1GbE, 2 * mini PCI-E, 1 * mSATA
    - Built-in +12V Locking Power Jack
    - Supports DDR4-2133 up to 16GB
    - ECO-design for EuP/ErP

    Specification
    Model SeriesFDF731V
    Part Number HBFDF731-3955-V (Non-WIFI) HBFDF731Z-3955-V (WIFI)
    Motherboard Specification
    CPU Fanless Intel® Celeron 3955U, Skylake-U 15W Processors
    Memory 1 * 260-pin DDR4-2133 SO-DIMM up to 16GB Total
    Graphics Intel HD Graphics
    LAN 1 x Intel i219-LM PHY Gigabit LAN
    3 x Intel i225-V 2.5GbE
    Audio NA
    Storage 1 x SATA3 6Gb/s Connector
    1 x mSATA (Full-size)
    WiFi / Mini-PCIE / SIM 1 x Mini-PCIe Slot Open (Half-size)
    1 x Mini-PCIe Slot Open (Full-size for 3G/LTE Modem Card)
    1 x SIM Card Socket    		 1 x WiFi + Bluetooth Installed
    1 x Mini-PCIe Slot Open (Full-size for 3G/LTE Modem Card)
    1 x SIM Card Socket
    TPM Intel fTPM 2.0 (PTT) Trusted Computing Firmware
    OEM Option: Onboard TPM v2.0
    Chassis Specification
    Enclosure Size 193 (W) x 142.4 (D) x 62 (H) mm
    Storage Bay 1 * 2.5” SATA Drive Bay
    Front I/O Port 1 * Power Button
    1 * Reset Button
    1 * Power LED
    1 * HDD LED
    2 * USB 2.0 ports
    4 * LAN LEDs
    2 * DB9 Punchouts for COM/GPIO (optional)

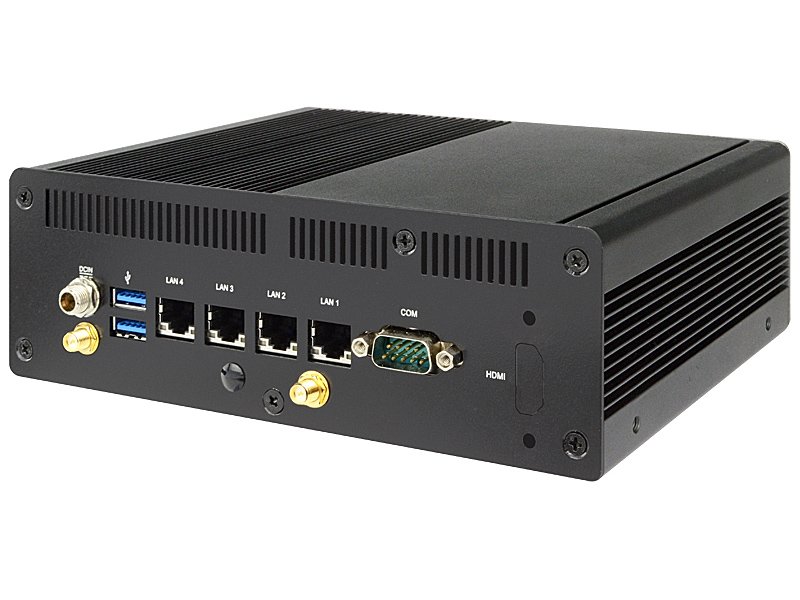

    Rear I/O Port 1 * +12V 2.5mm Diameter Locking DC Power Jack
    2 * USB 3.0 port
    4 * RJ-45 LAN ports
    1 * Serial port (RS232)
    1 * HDMI Punchout (4096 * 2304 @ 24Hz)
    Environment Operating Temperature : -20°C ~ 50°C with mSATA SSD, 0°C ~ 50°C with 2.5" Drive
    Storage Temperature : -40°C ~ 85°C
    Humidity : 10% ~ 95% RH @40°C (non-condensing)
    Functional Networking Appliance, Firewall/Router, Industrial Contol, Digital Security, Embedded System
    Certificate CE,FCC,ErP For Barebone
    CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter

     Ordering Info

    Part Number Description
    HBFDF731Z-3955-V Barebone with Celeron 3955U & WiFi
    HBFDF731-3955-V Barebone with Celeron 3955U
    HBFDF731Z-3965-V Barebone with Celeron 3965U & WiFi
    HBFDF731-3965-V Barebone with Celeron 3965U
    HCSFDMWM01B-F (Incl) Wall Mount
    HCS3XXDINRAILPS-F (Incl) DIN RAIL
    L01AS052-F (Incl) Adapter 12V 5A 60W
    HNSCOMWFAWCB161HF (for HBFDF731Z) WiFi + BT Mini PCIe card
    J05-ANT-GX57245-F (for HBFDF731Z) WiFi antenna
    HNS130MSHDHD02-F (Incl) 2.5" Mounting Rails
    LCSCHBJC3XX-F (Incl) Screw pack
    G01-2X10A-HDMI-1F (Incl) HDMI cable
    G01-COM-H2M20-1F (Incl) COM cable
